Z Master 5000 Series Rear Discharge 72" (183 cm) (72922)
Z Master 5000 Series mowers offer rear discharge decks for increased productivity in taller grass. These EFI models also use up to 25% less fuel than equivalent non-EFI mowers. The rear discharge design allows operators to trim on either side of the deck — no need to change direction to avoid discharging debris on roadways, sidewalks or flowerbeds. Clippings are dropped within the path of the mower, saving time and cleanup.
The Tweel Turf Tyres means no air pressure to maintain, no flat tyres, no compromises. Extra long wear life two to three times that of a pneumatic tyre at equal tread depth.
ARRIVING MARCH 2021
Michelin® X® Tweel® Turf Tyres
No air pressure to maintain, no flat tyres, no compromises. Get extra long wear life two to three times that of a pneumatic tyre at equal tread depth.
Exclusive TURBO FORCE® Deck
High-capacity TURBO FORCE® decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE® decks can be fine-tuned in order to conquer changing turf conditions.
7-Gauge, High-Strength Steel
The TURBO FORCE® deck is constructed of 7-gauge, high-strength steel which is 33% thicker and 32% higher in yield strength than ordinary 10-gauge commercial steel used in 7/10 decks. The combined effect is 75% stronger, so it easily handles the most demanding conditions and resists damage from impacts and abrasion.
A Flat Crisp Cut with Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Deluxe Suspension Seat
Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue.
Smarter design in a bull-nose bumper
7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 6 mm (1/4"), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.

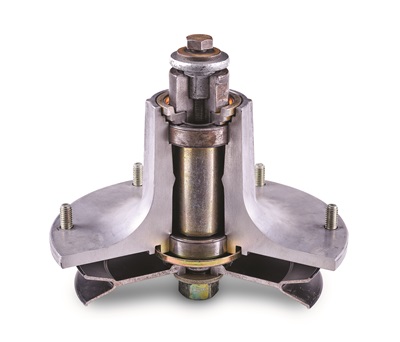

Cast Aluminium Spindle
Cools quickly for enhanced durability and performance.
Smooth, Powerful Response
The new unitised pump and wheel motor use proven commercial hydraulic components while eliminating hoses and other potential leak points. You'll get a smoother, faster response while enjoying an even more reliable machine.
Patented Adjustable Baffle
Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximise discharge velocity.
Operator Information Centre
The instrument panel includes a digital hour meter, fuel gauge, and voltage meter, as well as diagnostic indicators for the safety interlock system.
Folding Rollover Protection System ROPS
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
| Engine | 26.5 hp* (20 kw) Kohler® Command Pro EFI 747cc |
| Fuel Capacity | Petrol 45.4 litres |
| Adjustable Discharge Baffle | Standard |
| Air Filter | Heavy-Duty Canister Air Cleaner |
| Armrests | Standard |
| Blade Tip Speed | 5638.8 m/min (18,500+ ft/min) |
| Blade Type | .204” (.5 cm) heat-treated steel |
| Carrier Frame | 7.6 cm x 3.8 cm x 10 gauge (3" x 1.5" x 10 gauge) |
| Caster Tyres | 33 cm x 16.5 cm – 15.2 cm (13" X 6.5" – 6") Flat-Free Semi-Pneumatic |
| Cup Holder | Standard |
| Deck Design | 80-Grade 7-gauge 182.9 cm (72") TURBO FORCE® Rear Discharge w/ bull-nose bumper |
| Discharge Chute | Rubber |
| Drive System | Unitised Pumps 12cc/rev (shock valves) & Wheel Motors (14.6 cir) |
| Drive Tyres | Airless radial 60.96 cm (24") Michelin® X® Tweel® Turf Tires |
| Ground Speed | 16.1 km/h forward |
| Height of Cut | 2.5 cm x 14 cm by .6 cm increments |
| Number of Blades | 3 |
| Hour Meter | Standard |
| Hydraulic Fluid | Premium synthetic |
| ROPS | Folding; standard |
| Seat | Handcrafted deluxe suspension seat with arm rests featuring bullhorn accent |
| Spindle Bearings | Greaseless ball bearings |
| Spindle Housing | 22.9 cm (9") diameter cast aluminium |
| Steering Controls | 4.1 cm (1-5/8") diameter grips; adjustable, dampened |
| Weight | 605.5 kg |
| Warranty | 5 years/1200 hours limited warranty *See your certified Toro dealer for full details. |
| Disclaimer | *The gross horsepower of this engine was laboratory rated by the engine manufacturer in accordance with SAE J1940. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower. |
Light Kit
The lights easily mount to the mower frame and wiring quickly connects to the existing accessory circuit.
Part # 116-1154 – 5000 Series
Optional Blades
In addition to the high sail blade, which comes standard on Z Master® 5000 Series mowers, additional 1/4" (6 mm) blades are available to match regional and seasonal mowing conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Recycler® Mulching Kits
Recycler mulching kits deliver the industry's finest mulching performance and reduce mowing time up to 38% vs. bagging*.
*Respondents in a Texas A&M University study cut their lawns 38% faster when they didn't bag.
Roller Striping Kit
Roller striping kit is easily installed and provides a premium "stadium" after-cut appearance.
Toro Z Stand™
Exclusive Toro Z Stand provides an on-board tool to simply elevate the front end of the machine and provide access to the underside of the deck.
