Z Master® 4000 Series 60" (152 cm) (74054TA)
The Z Master® 4000 zero turn mower is a force to be reckoned with. Built tough with a powerful 25.5 hp* Kawasaki FX801V engine, heavy-duty commercial grade hydros, pneumatic smooth tread front tyres, 66 cm Voodoo Trac™ rear tyres, and a 152 cm (60”) 7-gauge high-strength steel TURBO FORCE® cutting deck paired with I-beam front end, tubular chassis and bumper to take on any job. Easy on and off with a deck step plate and anti-slip floormat. With the deluxe suspension seat, an hour meter, USB ports, phone holder, cup holder, and for after-hours work, powerful illumination with LED headlights, you’ll have everything you need to help you power through long days.
66 cm (26") Voodoo Trac™ Drive Tyres
Get the ultimate in agressive tread and styling and survey the task from a higher-vantage-point with 66 cm (26") Voodoo Trac™ Drive Tyres.

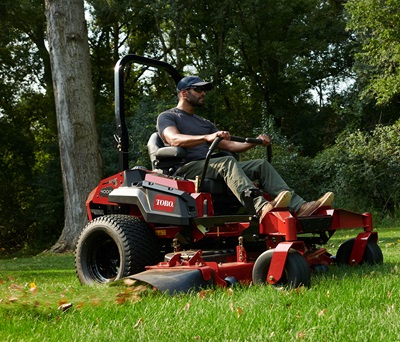

Up to 19.3 km/h
Get more done with ground speeds up to 19.3 km/h without reducing cut quality.

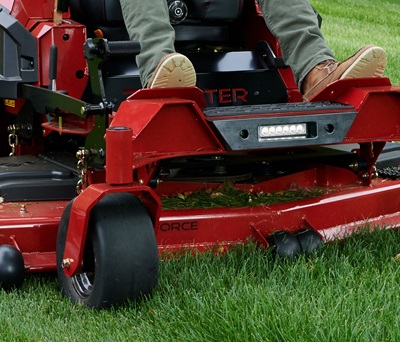

LED Headlights
Powerful illumination for after-hours work.
TURBO FORCE® Cutting Deck
Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.

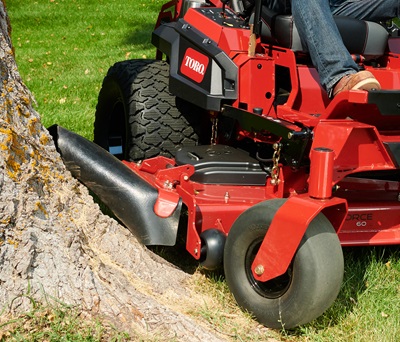

Rubber Discharge Chute
Trim close without damaging landscape structures or your chute.

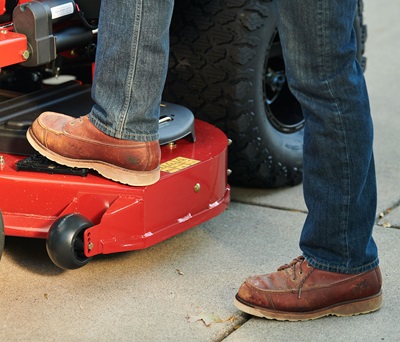

Deck Step Plate
Keep your grip and remove excess mud from your shoes with a deck step plate.
Clear Sightline to Rear Tyres
Clear sightline to rear tyres for enhanced contro so you can clear a path without tyre spin.

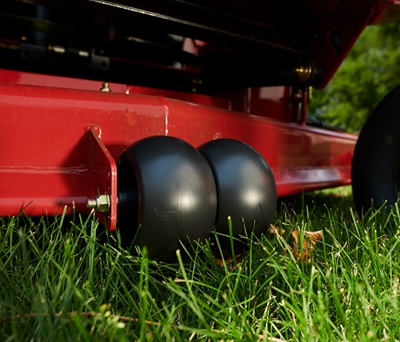

Dual Capture Anti-Scalp Rollers
Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.

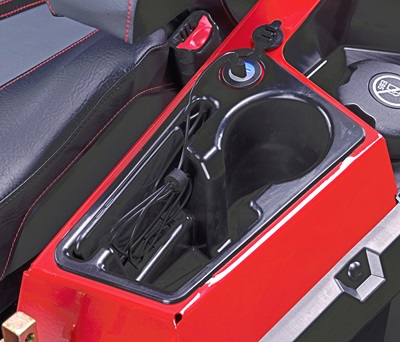

Phone and Cup Holder
Keep your phone and drink at arm's reach.

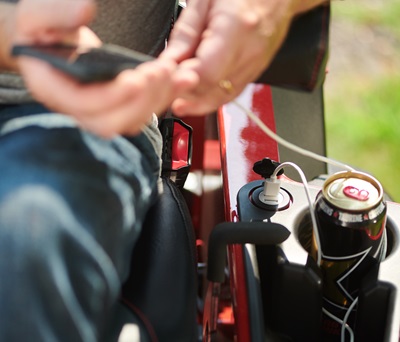

USB Ports
USB ports to help you stay charged on the job.
| Engine | 25.5 hp* Kawasaki FX751 (852cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner |
| Fuel Capacity | 37.9 litres |
| Blade Tip Speed | 18,500+ ft/min |
| Blade Type | .5 cm (.204") Heat-Treated Steel |
| Caster Tyres | 38 x 16.5 – 15.2 cm (15" x 6.5" - 6") Pneumatic |
| Clutch | Electromagnetic |
| Deck Design | 152.4 cm (60") 7-Gauge High-Strength Steel TURBO FORCE® |
| Discharge Chute | Rubber |
| Drive Tires | Voodoo Trac™ 66 x 30.5 – 30.5 cm (26" x 12" – 12") |
| Engine Displacement | 852cc |
| Foot Operated Height of Cu | Standard, 3.8 – 12.7 cm (.6 cm increments), 1.5" - 5.5" (.25" increments) |
| Ground Speed | Up to 19.3 km/h |
| Horsepower | 25.5 hp* |
| Hour Meter | Standard |
| Ignition | Electric |
| Lighting | LED Lights Standard |
| ROPS | Folding |
| Seat | Deluxe Suspension |
| Spindle Bearings | Maintenance-Free |
| Spindle Housing | 22.9 cm (9") Diameter Aluminium |
| Steering Controls | 3.6 cm (1.4") Diameter Grips; Adjustable, Dampened |
| Transmission | ZT-4400 Integrated Pumps & Wheel Motors |
| Warranty | 5 years/1250 hours limited warranty |
| Disclaimer | *The gross horsepower of these engines was laboratory rated at 3,600 RPM by the engine manufacturer in accordance with SAE J1940 and SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly different. |
| Download | Type | Information |
|---|---|---|
| Toro Professional Product Range | Brochure |
