Groundsmaster® 7200 (30495TC)

Groundsmaster® 7200 (30495TC)
Groundsmaster® 7200 (30495TC)

The Groundsmaster® 7200 zero turn rotary mower is rugged enough to be called a Groundsmaster®. It has powerful Kubota® 24.8 hp (18.6 kW), 3-cylinder, liquid-cooled diesel engine to get the job done well. Durable heavy-duty 7-gauge welded steel deck construction and the industry's toughest spindle assembly provide long life. Use the Groundsmaster® 7200 for more than mowing with the added versatility for grooming infields and blowing leaves.

Groundsmaster® 7200 model can be configured with one of the following decks:

152.4 cm side discharge deck
157.5 cm base deck which can be set up as either a rear discharge deck or Guardian® Recycler® deck
183 cm side discharge
183 cm base deck which can be set up as either a rear discharge deck or Guardian® Recycler® deck

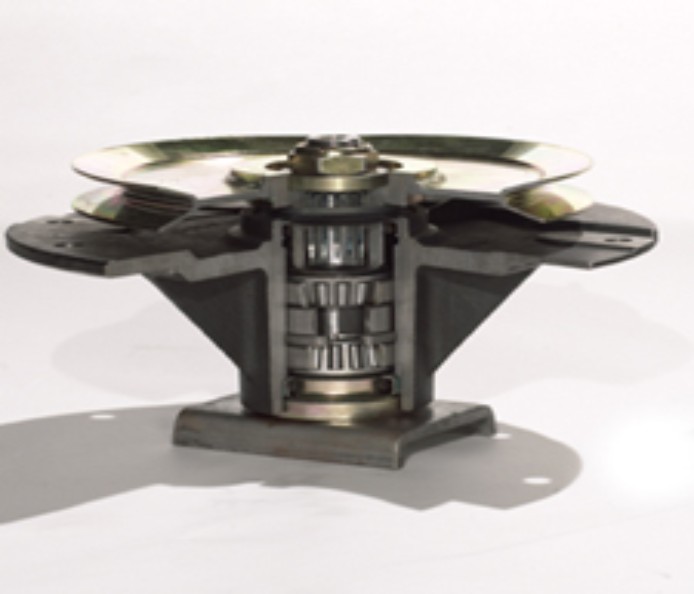

Industry's Toughest Deck and Spindle Assembly

Industry's Toughest Deck and Spindle Assembly

The Groundsmaster® 7200 cutting decks stand up to the rigours of everyday use with high-strength, 7-gauge welded-steel construction that resists cracking. In fact, Toro decks are 33% thicker and 85% stronger than competitive decks made from ordinary 10-gauge steel. The decks also employ heavy-duty spindle assemblies with a 9" (23 cm) diameter base to absorb impacts that would damage most other assemblies.

Direct-Drive Transmission

Direct-Drive Transmission

Coupling the transmission directly to the engine eliminates drive belts and creates an efficient and robust powertrain system that requires less maintenance and service.

Bull-Nose Bumper

Bull-Nose Bumper

This unique design provides durablity and minimises blowout of grass and dust. The leading edge is raised 6.4 mm so grass stands up straight for a cleaner cut.

60" (152.4 cm) & 72" (183 cm) Side Discharge Deck

60" (152.4 cm) & 72" (183 cm) Side Discharge Deck

A blade tip speed of 18,000 ft/min assures a cleaner cut without sacrificing mowing speed. The patent-pending rubber discharge deflector disperses clippings evenly while protecting trees and other objects from damage.

62" (157.5 cm) & 72" (183 cm) Rear Discharge or Guardian® Recycler® Deck

62" (157.5 cm) & 72" (183 cm) Rear Discharge or Guardian® Recycler® Deck

The patented vertical discharge system offers improved safety and clipping management by forcing the clippings to be cut and re-cut.

Quick Attach System™ (QAS)

Quick Attach System™ (QAS)

The exclusive Toro QAS allows switches between attachments in less than a minute without tools.

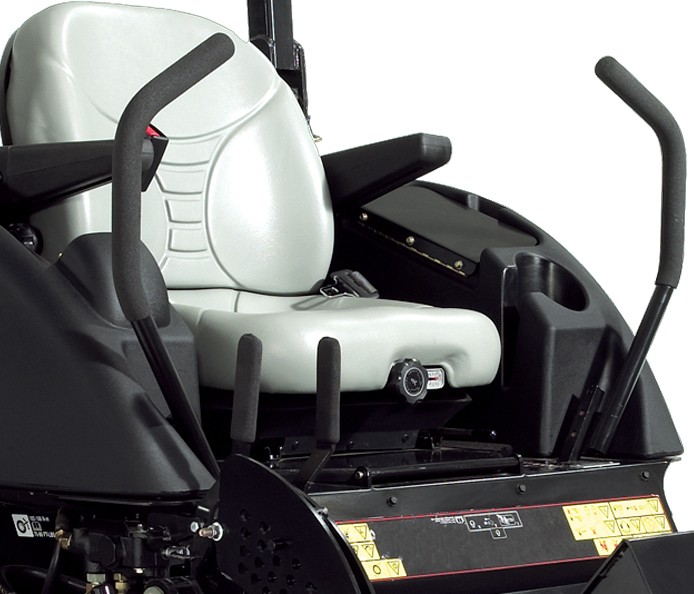

Deluxe Suspension Seat

Deluxe Suspension Seat

The new air-ride seat suspension glides over the bumps improving operator comfort and reduces operator fatigue when mowing for a prolonged period.

All-day Comfort and Maximised Productivity

All-day Comfort and Maximised Productivity

The ideal choice for productivity and operator comfort. It’s capable of a 20 km/h mow/transport speed and the 43.5 litres fuel tank is large enough for a full day of mowing. The hydraulic deck lift, zero-turn stick operation, deluxe suspension seat and cup holder ensure operator comfort and reduce fatigue.

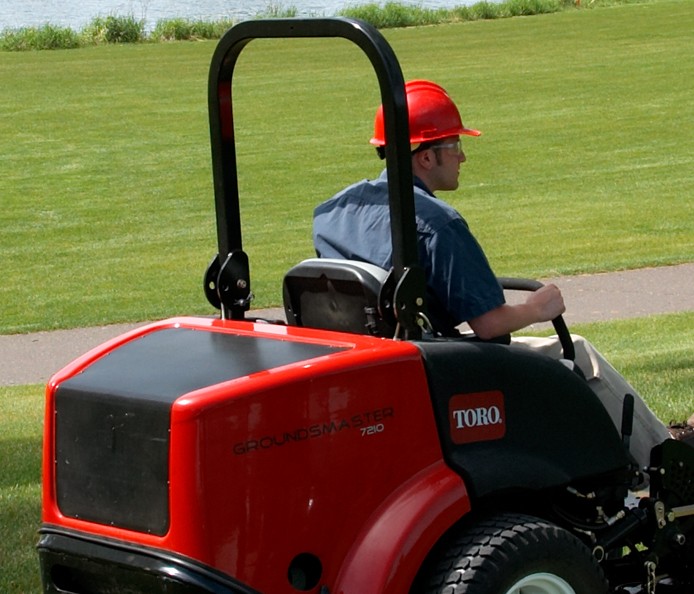

Folding Rollover Protection System

Folding Rollover Protection System

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.


24.8 hp (18.6 kW) Kubota® 3-cylinder, liquid-cooled diesel 1,123 cc

Cutting Width

152.4 cm, 157.5 cm, 183 cm

Deck Material

7-gauge welded steel

Deck Type

Side discharge adjustable baffle, Rear discharge or Guardian® Recycler

Fuel Capacity

43.5 litres

Maximum Forward Speed

20 km/h

Height of Cut

1" - 6" adjustable in 0.25" increments

Drive Tyres

24" x 12" - 12", 6-ply pneumatic tubeless, demountable and interchangeable

Caster Tyres

15" x 6" - 6", 4-ply ribbed tread, tubeless

Spindle Housing

9" cast based

Spindle Bearings

Premium greasable tapered roller bearings


Approx. 862 kg

**Weight may vary depending on deck configuration.


2 years/1500 hours limited warranty

*See your certified Toro dealer for full details on warranties.


Road Light Kit

Road Light Kit includes headlights, red/amber flashers and turn signals.

Universal Mount Sunshade, White

Stay cool and productive when mowing with a canopy.

Jack Stand Kit

Raises mower approximately 18" (45.7 cm) to access underside of mower deck for blade change or cleaning.

Rear Quick Attach System™ (QAS)

With the QAS, anyone can switch from one attachment to another in less than a minute, with no tools required! Quickly get your fields back into playing condition. Accessories include: Debris Blower, Finish Grader, Tooth Rake, Drag Mat Carrier System, Coco Drag Mat, Steel Drag Mat, and Grooming Broom.

Finish Grader

Designed for renovation and construction of turf areas.

Drag Mat Carrier System

A Quick Attach System mounting carrier frame designed to eliminate the need to manually lift drag mats between passes and traveling from field to field. 72" (183cm) width, accepts steel or coco drag mats. Hydraulic raise/lower of drag mats.

•Rear Steel Drag Mat - Designed to quickly groom and finish wet or dry sports fields, while minimising the displacement of infield mix.
•Rear Coco Drag Mat - Designed to quickly produce a premium finish on dry sports fields, while minimising the displacement of infield mix especially into the outfield.

Tooth Rake

Raking depth is adjustable to desired play. Combine with Spring Rake for a professional finish.

Grooming Broom - Segmented

Grooming brooms designed to minimise top surface disruption to maximise firmness for a smooth finished look.

Download Type Information
Toro Groundsmaster 7200/7210 Brochure
