Groundsmaster® 360 Quad-Steer™ 4WD with Cab (31236)
The all-new Toro® Groundsmaster® 360 Quad-Steer™ 4WD with all-season safety cab reinvents the way a mower performs. Powered by a 36 hp (26.8 kW) Kubota® 4-cylinder diesel engine, this machine utilises revolutionary Quad-Steer™ all wheel steering to maximise productivity. Climb hills without slipping. Make 180° turns without tearing turf. Hug the turns or side hills while mowing in total comfort.
Groundsmaster® 360 Quad-Steer™ 4WD with all-season safety cab model can be configured with one of the following decks:
- 152.4 cm side discharge
- 157.5 cm base deck with Guardian® Recycler® deck
- 183 cm side discharge
- 183 cm base deck which can be set up as either a rear discharge deck or Guardian® Recycler® deck.
- 254 cm rear discharge deck
All-Season Safety Cab
Factory installed, ROPS certified, pressurized cab with AC and heat. Tempered curved windshield, opening side window acts as an emergency exit, opening rear window, tinted side and rear glass; front wiper/washer; interior mirror and exterior side mirrors; SMV sign; interior dome light.

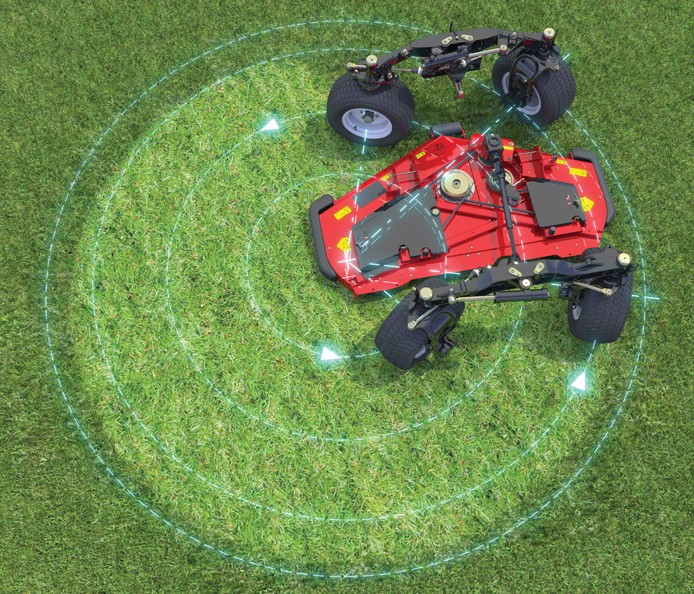

The Groundsmaster® 360 features Quad-Steer™, true, all-wheel steering to achieve unmatched manoeuvrability, control and performance. This is the most innovative steering geometry ever offered in a cutting machine. We guarantee you've never driven a mower like this before.

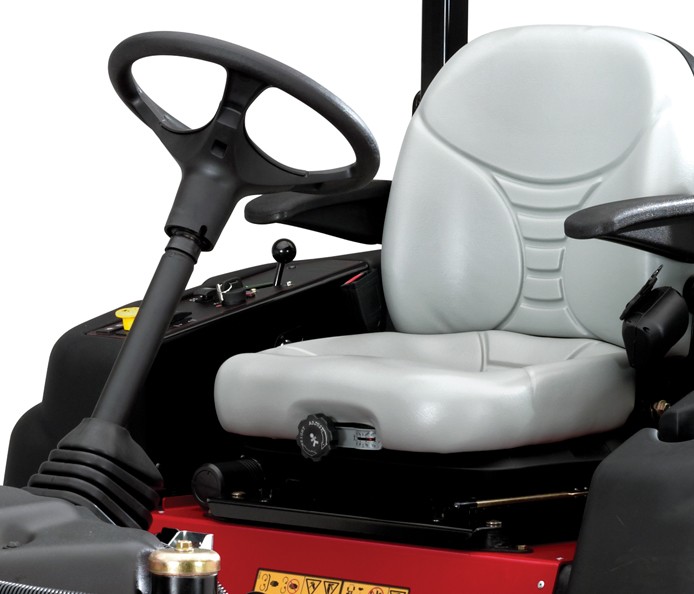

Controls placed at your fingertips, exceptional line of sight forward, to the sides and rear-ward and comfortable seating.The Groundmaster® 360 is designed with optimal operator comfort in mind. Even after hours of driving, you won't want to quit.

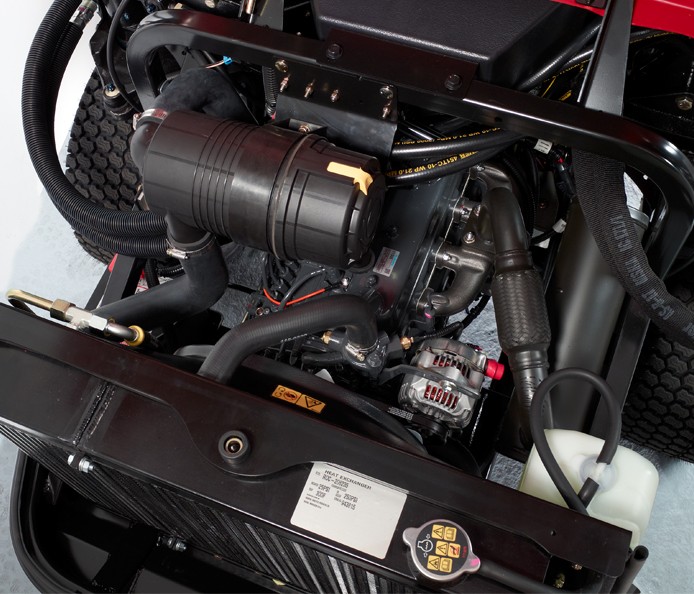

Durable Engine and Deck
The Groundsmaster® 360 comes with the durability you've come to expect from Toro®. From the Kubota® engine to the superior deck construction, you can count on years of performance.
Great Traction, No Turf Tear
A wider track, combined with a hydrostatic drive system offers exceptional stability and control, even on hillsides. With the Groundsmaster® 360 there is no turf tearing when making sharp turns. *Always use caution when driving and avoid unsafe terrain.
Kubota® 1505 4-cylinder, liquid-cooled diesel engine, 36 hp (26.8 kW) @ 3000 rpm
51.1 litres diesel. Biodiesel Ready for use up to B-20 (20% biodiesel and 80% diesel blend).
Forward 0-22.5 km/h, variable. Reverse 0-13.7 km/h, variable.
Quad-Steer™ all wheel steer with four wheel Ackermann steering. Two turns Lock to Lock controlled via steering wheel and automatic synchronizing hydraulic cylinders.
CrossTrax® drive system utilising series parallel hydraulic drive with full time forward and reverse 4WD. Patent pending.
Hydraulically actuated wet multi disc clutch
Height ROPS up: 218 cm
2 years limited warranty. Refer to operator’s manual for further details.
Guardian® Recycler® - 183 cm Side Discharge Deck
Save time and increase productivity with this patented vertical discharge system.Time-consuming collection and disposal of clippings is completely eliminated. Plus, with no discharge chute, safety is improved.
Front Quick Attach System™ (QAS) 4WD
With the Front Quick Attach System™ (QAS), anyone can switch from one attachment to another in less than a minute, with no tools required! The QAS allows you to do more with less, and get the job done faster.
