653 ACCU-MASTER Reel Grinder
Quality-of-cut and performance of your equipment is priority number one.
This is why we’ve engineered our 653 to grind however you want, so whether doing quick “touch-up” spin grinding or returning the reel to manufacturer specifications, nobody does either with more quality and efficiency than Foley.
653 ACCU-MASTER Offers:
Automated In-Feed Grind Cycles for both the spin and relief grind process separates Foley from all others! The ACCU-Touch 3 control innovations continue making grinding easier than ever.
Two Minutes to Spin Grind is all it takes when distinguishing technician time from grind time. Let the ACCU-Touch 3 do the work while you do something else.
Hands-Free Relief is the feature that has courses around the world opting for grinders that do more than just spin grind. Foley automation of in-feeds and the patented auto-index provides productivity and choice that other grinders don’t.
Automatic Placement features the ACCU-Reel Selector and Cylinder Height Stop system that automatically locates the reel for a fast and easy placement to spin and relief grind in one set-up.
Three models available:
FO6530919 : ACCU-MASTER 653 Reel Grinder - Front Load
FO6530949 : ACCU-MASTER 653 Reel Grinder - Slotted Top
FO6530929 : ACCU-MASTER 653 Reel Grinder - Rear Doors

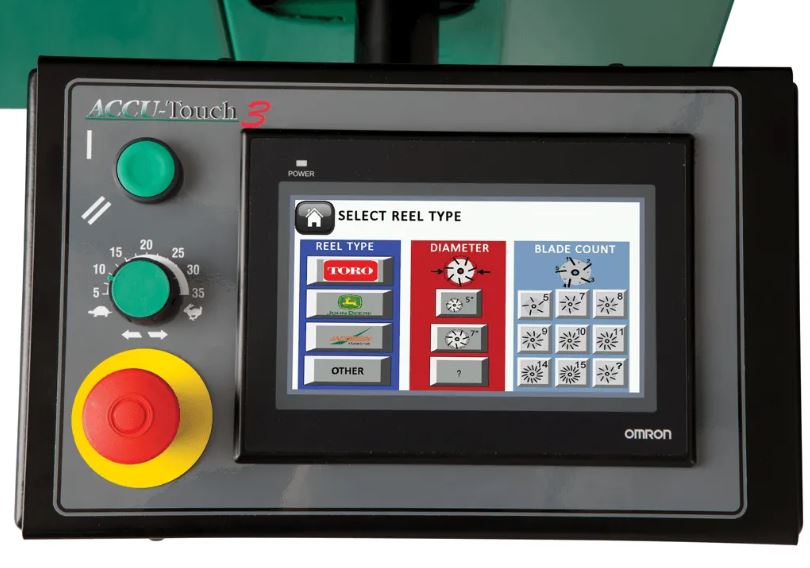

ACCU-Touch 3 Control
ACCU-Touch 3 Control provides a step-by-step tutorial for new technicians and a quicker setup and spin grind feature for the more experienced operators. You tell the machine what you’re working on and the machine does the rest. Pre-programmed spin speeds, relief torque, and in-feeds are only a few of the new features found in the ACCU-Touch 3.

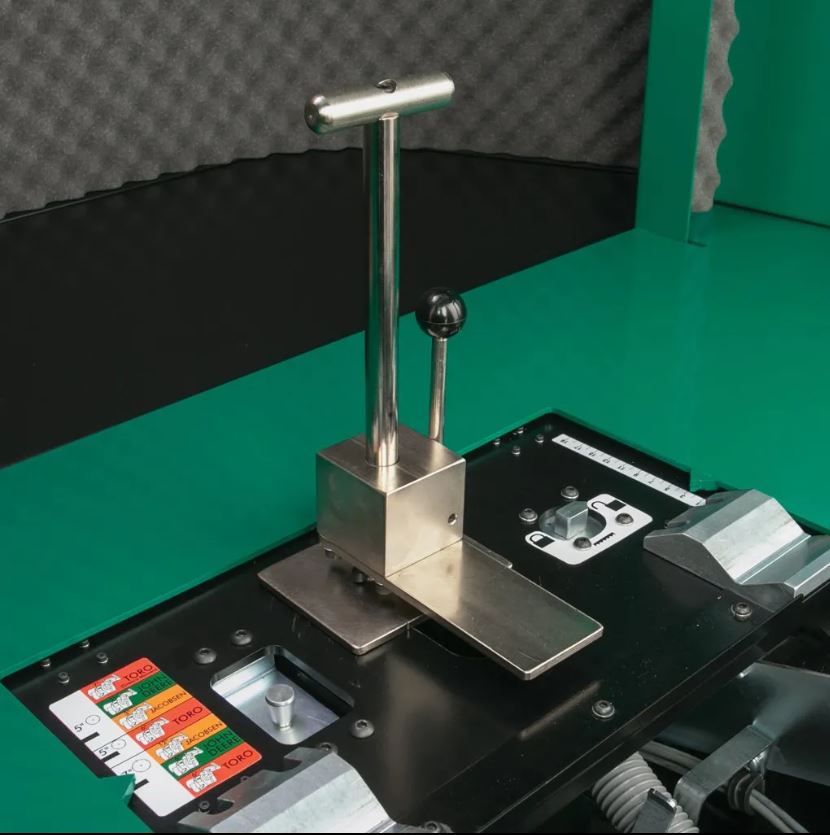

ACCU-Reel Selector
ACCU-Reel Selector allows for easy adjustment of the rear roller v-mounts and automatically positions the reel based on reel make and diameter. The heavy-duty rear clamp is easily installed to secure the rear roller.

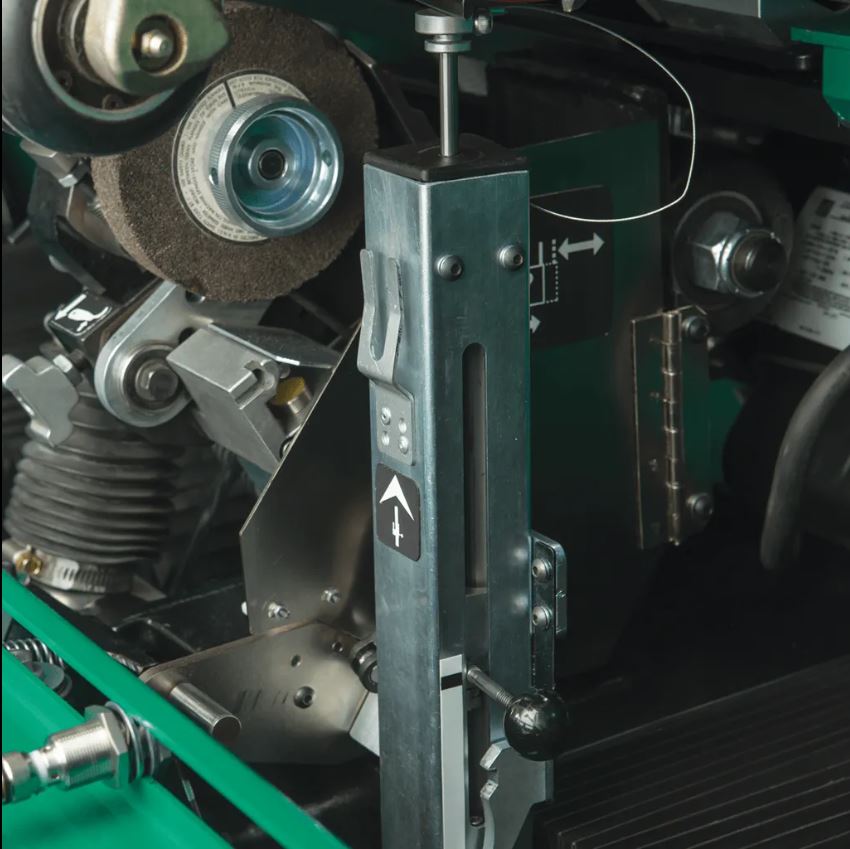

Cylinder Height Stop
Cylinder Height Stop is built into the gauging system and easily positions the reel height correctly for both the spin and relief grind processes.

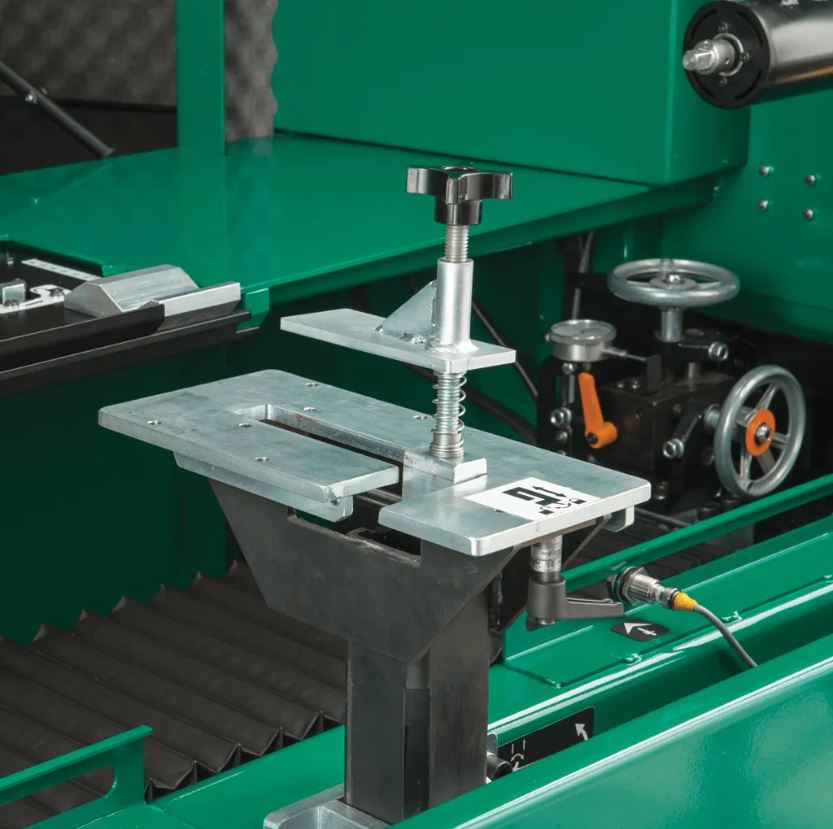

Front Roller Clamp
Front Roller Clamp is adjustable to accommodate various rollers and groomers and the single clamp design moves up and down to set the height of the reel using the cylinder height stop.

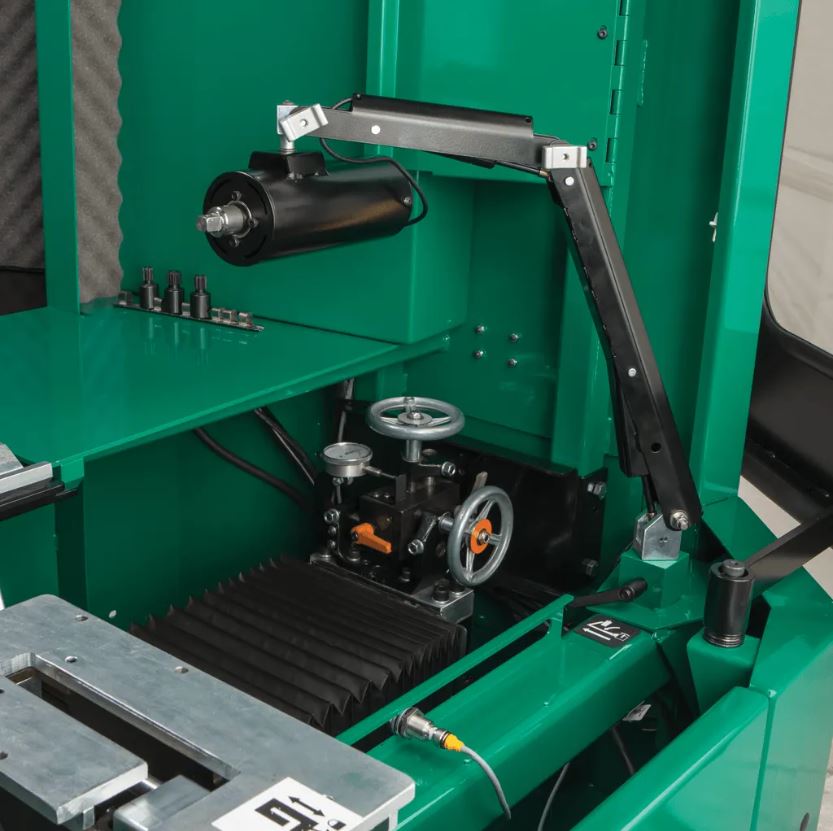

Counter-Balanced Spin Drive
Counter-Balanced Spin Drive is easy to position and connect directly to the reel shaft, and the spin drive mounting system is easily moved from one side to another.

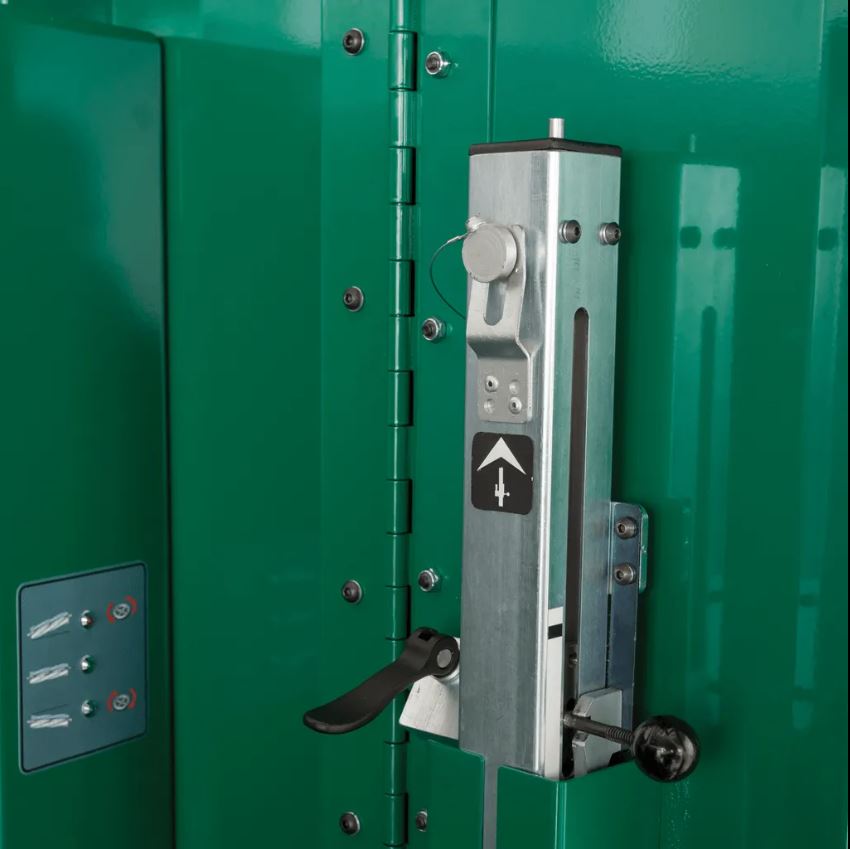

Accu-Positioning Gauge
Accu-Positioning Gauge uses the touch-screen display and a “bubble-style” graphic, ensuring you’re always grinding to a perfect cylinder.

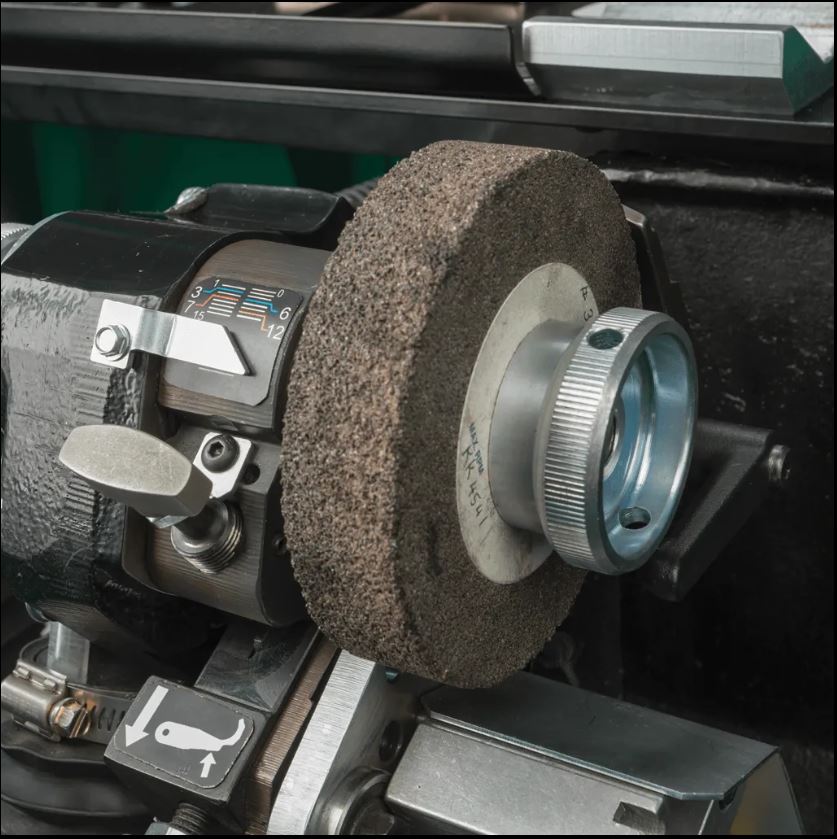

Robust Grinding Head & Relief Assembly
Robust Grinding Head & Relief Assembly provides accuracy that ensures a sharp edge in mere minutes when spin grinding, and includes a Relief Angle Adjuster that makes grinding correct angles easier than ever before.
Optional Electric Hoist
Optional Electric Hoist provides an overhead crane that has the capability to load reels from the front or rear of the machine.
Optional Equipment
220v to 110v Step-down Transformer
Rear Access Door Model
Electric Overhead Hoist for Front or Rear Load
Rear doors with mounted lift table
3706228 Power Brush Bracket
6530550 Ground Drive Kit
6330527 Front Tooling Extension
| Download | Type | Information |
|---|---|---|
| 653 Accu-Master Reel Grinder brochure | Brochure |
