60" (152.4 cm) Z Master® Commercial 3000 Series with MyRIDE® Suspension System (75936)
Long days will feel shorter with the all-new, amazingly comfortable MyRIDE® suspension system on Toro® Z Master® Commercial 3000 Series 60 inch mower. The fully suspended, adjustable operator platform isolates bumps and vibrations so you don’t feel the rough terrain. It’s the Toro toughness you expect with a ride you won’t believe.
This 152.4 cm Commercial 3000 series model features a 25.5 hp Kawasaki® FX801V engine, TURBO FORCE® deck and our patented adjustable discharge chute. The unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points.
2016 model year shown
MyRIDE® Suspension System features a fully suspended operator platform that allows for 3.6" of travel and reduces impacts, bumps and vibrations that reach the operator, resulting in a superior ride.
Personalised Ride Settings
The operator can easily and quickly adjust their ride settings to account for their personal ride preferences, without the use of tools!
TURBO FORCE® Deck
Rugged, 7-gauge high-strength steel deck constructed to handle extreme conditions, delivering the ultimate in cutting performance.
Industry's Toughest Spindle Assemblies
Toro's rugged spindle assemblies survive impacts that would destroy lesser spindles. A stout cast iron housing with a massive base and six mounting bolts absorbs impact loads and distributes them across a broader area of the deck shell. Plus, the solid, one-inch diameter shaft is alloy steel.
High-lift, flex-resistant, 0.63 cm thick blades are made of heat-treated steel for maximum durability and an outstanding cut every time.
Unitised Pump and Wheel Motor with Cooling Fans
The new unitised pump and wheel motor use proven commercial hydraulic components while eliminating hoses and other potential leak points. You'll get a smoother, faster response while enjoying an even more reliable machine.
Roll Over Protection System (ROPS)
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.
25.5 hp (19 kW) Kawasaki® V-Twin FX801V 852 cc
24" x 12" - 12" Turf Master
13" x 6.5" - 6", smooth tread, pneumatic
|Maximum Forward Speed||
TURBO FORCE® 7-gauge high-strength steel with bull-nose front bumper
|Height of Cut||
1.0" - 5.5" in 0.25" increments

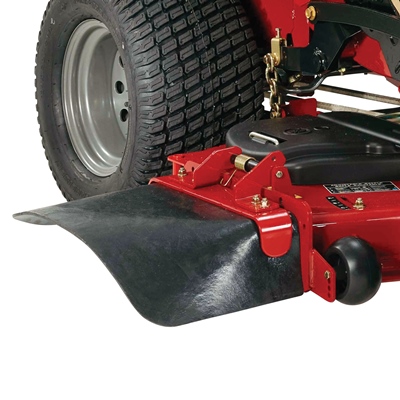

Side discharge tools adjustable baffle
|Rubber Discharge Chute||
|MyRIDE® Suspension System||
Comfort platform: MyRIDE® suspension system
22.9 cm diameter cast iron
Maintenance-free ball bearings
0.6 cm heat-treated steel
|Blade Tip Speed||
|Carrier Frame Construction||
3" x 1.5" x 10 gauge
5 years/1200 hours limited warranty and 5 years/1200 hours spindle limited warranty
*See your certified Toro dealer for full details on warranties.
