NEW 52" (132 cm) Z Master 2000 Series MyRIDE® HDX (77290)

NEW 52" (132 cm) Z Master 2000 Series MyRIDE® HDX  (77290)
NEW 52" (132 cm) Z Master 2000 Series MyRIDE® HDX  (77290)


Take comfort to the next level with the 132 cm (52”) Z-Master 2000 HDX zero-turn mower with MyRIDE® Suspension System. Built with a power-packed 23.5 hp* Kawasaki® FX engine with heavy-duty air cleaner, commercial-grade hydros, 23” Kenda Reaper Tyres, and a 7/10-Gauge High-Strength Steel TURBO FORCE® cutting deck for commercial-grade productivity. With the customisable MyRIDE® Suspension System to isolate bumps and vibrations, plus a USB port, cup holder, and storage space, you’ll stay comfortable – even on the longest days.

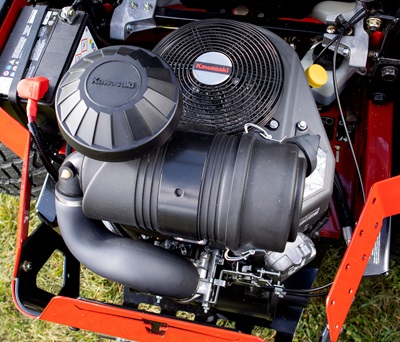

23.5 HP* Kawasaki® Engine

23.5 HP* Kawasaki® Engine

Enjoy top-line performance from the professional-grade 23.5 HP* Kawasaki engine.

58.42cm (23") Kenda Reaper Drive Tyres

58.42cm (23") Kenda Reaper Drive Tyres

Large rear-drive tyres for a no-quit push to finish strong.

Commercial-Grade Hydro-Gear ZT-3800

Commercial-Grade Hydro-Gear ZT-3800

Fast, clean work with commercial-grade ZT-3800 hydros.

MyRIDE® Suspension System

MyRIDE® Suspension System

Save your body from the toughest terrain with the MyRIDE® Suspension System.

TURBO FORCE® Cutting Deck

TURBO FORCE® Cutting Deck

Enjoy years of reliable performance with a fully tubular frame and 7/10-gauge steel deck.

Customise Your Ride

Customise Your Ride

Customise your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.

Engine

23.5 hp* Kawasaki FX730V 747cc with Heavy Duty Air Cleaner

Fuel Capacity

26.5 litres

Cutting Width

132 cm (52")

Blade Tip Speed

18,500+ ft/min

Caster Tyres

33 cm x 16.5 cm x 15.2 cm (13" x 6.5" x 6") Pneumatic

Clutch

Electromagnetic

Deck Design

12.7 cm (5”) deck depth, 7/10-Gauge High-Strength Steel TURBO FORCE® w/ bull-nose bumper

Discharge Chute

Rubber

Drive Tyres

Kenda K3012 58.4 x 26.7 – 30.5 cm (23” x 10.5” – 12”)

Engine Displacement

726cc

Foot Operated Height of Cut

Standard

Ground Speed

Up to 17.7 km/h

Height of Cut

3.81 cm – 12.7 cm in 0.635 cm increment
1.5” – 5” in 0.25” increments

Ignition

Electric

Lighting

LED Headlights

ROPS

Folding

Comfort Platform

MyRIDE® Suspension System

Shocks

1 center / 2 rear

Seat

High-Back Comfort with Armrests

Adjustability

5 point adjustment on rear shocks

Spindle Housing

20.3 cm Diameter Aluminium

Steering Controls

3.6 cm Diameter Grips; Adjustable, Dampened

Tool-mounting Capability

Side Console / Rear Guard Ready

Transmission

Hydro-Gear ZT-3800

Warranty

4yr/750 hr**

Disclaimer

Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*The gross horsepower of these engines was laboratory rated by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.
**See retailer for warranty details.
