50" (127 cm) TimeCutter® MX 5075 MyRIDE® (74778)

50" (127 cm) TimeCutter® MX 5075 MyRIDE® (74778)
50" (127 cm) TimeCutter® MX 5075 MyRIDE® (74778)


TimeCutter® MX zero turn mowers offer the same time-saving speed and agility of a TimeCutter® SS with the added strength and durability of a fabricated deck and heavy-duty transmissions.

The TimeCutter® MX 5075 zero turn riding mower is powered by a 24.5 hp Toro® OHV V-Twin cylinder engine. It features a 127 cm, 10 gauge steel fabricated cutting deck and convenient washout port. Mow in the ultimate of comfort sitting on a MyRIDE® suspension system deluxe padded premium seat with adjustable armrests. It also features a Smart Speed® control system with three speed range - Trim, Tow and Mow for precise control and easy maneuvering.

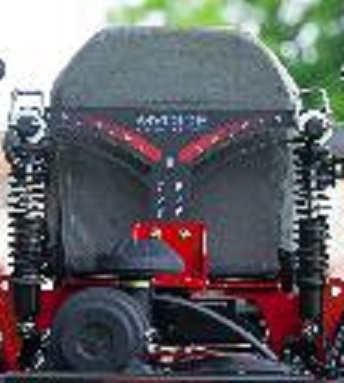

Comfortable Seat - MyRIDE® Suspension System

Comfortable Seat - MyRIDE® Suspension System

The TimeCutter® MX5075 zero turn lawn mower features the smooth MyRIDE® suspension system with a suspended operator platform that cushions you from bumps and vibrations on rough terrain.

Powerful Toro® OHV V-Twin Engine

Powerful Toro® OHV V-Twin Engine

Powerful 24.5 hp Toro® OHV V-Twin engine provides smooth, quiet and optimal power.

Smart Speed® Control System - Three Speed range

Smart Speed® Control System - Three Speed range

Toro’s Smart Speed® control system lets you choose from three ground speed ranges for optimal performance. Use low TRIM range to trim closer for maximum time savings, choose medium TOW range for towing attachments, or select high MOW range to mow large open areas and finish quickly.

Dual Hydrostatic Drive System - ZT 2200

Dual Hydrostatic Drive System - ZT 2200

Provides independent power to each wheel for maximum traction and maneuverability.

Fabricated Deck

Fabricated Deck

Welded together from plates of 10-gauge steel, this deck can handle tough conditions. The lower the guage the thicker the steel.

Heavy-Duty 10 Gauge Frame

Heavy-Duty 10 Gauge Frame

Provides increased strength, durability and reliability.

Automatic Parking Brake

Automatic Parking Brake

Automatically engages when the control arms are moved outward. Eliminates the need for a separate parking brake, making operation easy.

Engine Guard

Engine Guard

This heavy-duty steel guard protects the engine from branches and debris as you maneuver around your lawn.

11.4 Litre Fuel Capacity

11.4 Litre Fuel Capacity

All TimeCutter riding mowers feature a large 11.4 litre fuel tank for more mowing with fewer fill-ups. Knowing when to fill up is simple thanks to the translucent tank, which also helps to prevent overfilling.

Engine

24.5 hp (18.3 kW) Toro® OHV V-Twin 708 cc

Cutting Width 127 cm
Deck Material

Fabricated deck - triple blade

Drive System

Dual Hydrostatic Hydro-Gear® ZT 2200

Ground Speed (Maximum)

11.3 km/h, Smart Speed® control system - 3 speed range

Height of Cut

3.8 - 11.4 cm, 7 positions

Fuel Capacity

11.4 litres

Engine Guard

Standard

Tyres

Rear: 50.8 cm x 25.4 cm
Front: 33 cm x 16.5 cm

Digital Hour Meter

Optional

Washout Port

Standard

Seat

MyRIDE® suspension system with 45.7 cm thickly padded premium

Adjustable Armrests

Standard

Hitch Kit

Standard

Floor Mat

Standard

Weight

289.4 kg

Warranty*

3 years warranty

*See your certified Toro dealer for full details on warranties.

Download Type Information
Toro Ride On Mowers Brochure
