42" (106.7 cm) TimeCutter® MX 4200 (74766)


TimeCutter® MX zero turn mowers offer the same time-saving speed and agility of a TimeCutter® SS with the added strength and durability of a fabricated deck and heavy-duty transmissions.
The TimeCutter MX 4200 zero turn riding mower is powered by a 22.5 hp Toro® V-Twin cylinder engine with self-cleaning air filtration system. It features a 106.7 cm, 10 gauge steel fabricated cutting deck and convenient washout port. Mow in the ultimate of comfort sitting on an 45.7 cm thickly padded premium seat. It also features a Smart Speed® control system with three speed range - Trim, Tow and Mow for precise control and easy maneuvering.
Model year 2015 shown.

Smart Speed® Control System - Three Speed range
Toro’s Smart Speed® control system lets you choose from three ground speed ranges for optimal performance. Use low TRIM range to trim closer for maximum time savings, choose medium TOW range for towing attachments, or select high MOW range to mow large open areas and finish quickly.

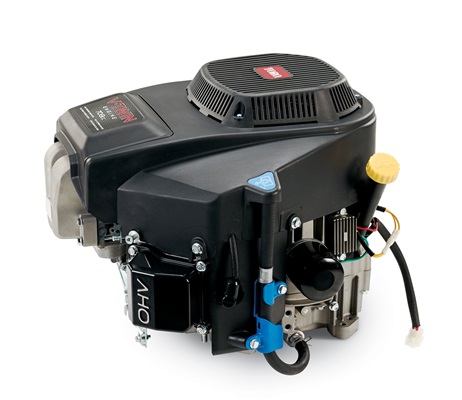

Powerful Toro® OHV V-Twin Cylinder Engine
Toro’s premium V-Twin cylinder engine is tuned specifically to the requirements of each machine they power, so they’re ideal for the applications they’re made for. Their intelligent design and tight tolerances help the governor respond faster with more power when you need it, so you’re ready to handle your toughest outdoor tasks. With heavy-duty components and innovative features, it’s the perfect match for the job you need to do.
Key features:
• Self-cleaning air filtration system
• Two-barrel carburetor
• Quick-drain oil hose
• Vacuum override choke
• 5-bolt heads
• Heavy-duty air cleaner hinge
• Cast-iron cylinder liner
• Automotive-style piston assembly

Comfortable Seat
When you're mowing for an extended period, there's no substitute for a good seat. The 45.7 cm extra tall seat provides ample back support for a smooth, comfortable ride.

Dual Hydrostatic Drive System - ZT 2100
Provides independent power to each wheel for maximum traction and maneuverability.

Engine Guard
This heavy-duty steel guard protects the engine from branches and debris as you maneuver around your lawn.
Engine | 22.5 hp (16.8 kW) Toro® OHV V-Twin cylinder 708 cc |
Cutting Width | 106.7 cm |
Deck Material | Fabricated deck - twin blade |
Drive System | Dual Hydrostatic Hydro-Gear® ZT 2100 |
Ground Speed (Maximum) | 11.3 km/h, Smart Speed® control system - 3 speed range |
Height of Cut | 3.8 – 11.4 cm, 7 positions |
Fuel Capacity | 11.4 litres |
Engine Guard | Standard |
Tyres | Rear: 45.7 cm x 19 cm |
Washout Port | Standard |
Seat | 45.7 cm extra tall |
Hitch Kit | Standard |
Weight | 231.8 kg |
Warranty* | 3 years warranty *See your certified Toro dealer for full details on warranties. |
