Toro Australia

Perrot LVZE Pop-Up Sprinkler

Perrot LVZE Pop-Up Sprinkler
Perrot LVZE Pop-Up Sprinkler




New product!

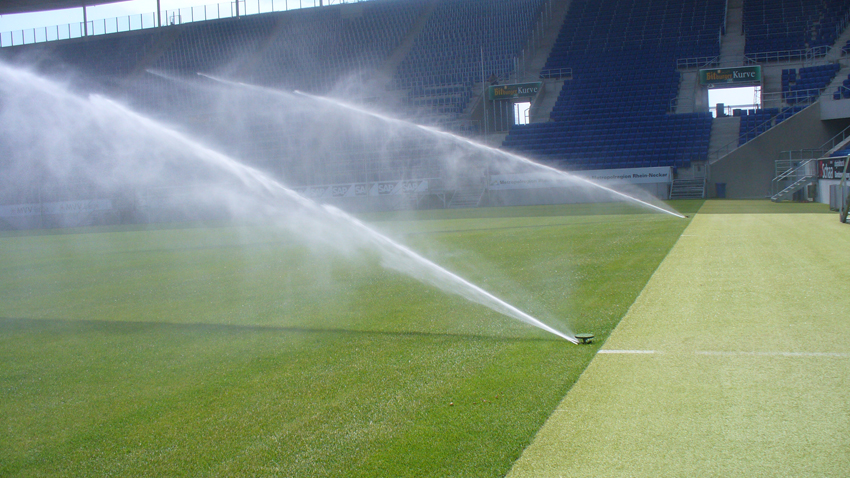

The Perrot LVZE pop-up sprinkler range is an ideal sprinkler for watering large turf areas. Capable of achieving a throw of up to 21.6 m, the LVZE can be used in larger turf areas, parks and sports grounds. Featuring Perrots proven impact drive system, the LVZE sprinkler works in a wide variety of water sources.

Nozzle with Diffuser Pin

Nozzle with Diffuser Pin

Nozzle with a diffuser pin that can be screwed in or out of the flow path to increase or decrease the sprinklers throw.

Top-Serviceable

Top-Serviceable

Maintenance on the sprinkler can be performed from the top of the sprinkler without the need for digging.

Anti Back-Splash Lever Arm

Anti Back-Splash Lever Arm

Anti back-splash lever arm ensures that water from the lever arm is directed parrallel to the main jet. This will avoid any unwanted overspray especially in part circle applications.

Full Circle (K) & Part Circle (W)

Full Circle (K) & Part Circle (W)

LVZE is available in full and full/part circle models


Full Circle (K) - factory pre-set 360° arc
Part Circle (W): 30 - 330° - via arc adjustment springs

360° - lift the trip lever

Proven Impact Drive

Proven Impact Drive

Perrot Impact drive technology ensures an uninterrupted flow path that allows the use of a wide variety of water sources.

Robust Construction

Robust Construction

Constructed from brass, stainless steel, engineered plastics and housed in a hot dipped gavanised can, the LVZE has been built to last.

Perrot LVZE Pop-Up Sprinkler

Perrot LVZE Pop-Up Sprinkler

Applications

Medium to large sized turf areas

Nozzle Sizes

4.8, 5.2, 6, 7 and 8 mm

Operating Pressure

300 - 700 kPa

Radius Range

15.1 - 21.6 m

Flow Rate

40 - 135 L/Min

Trajectory

22°

Inlet

25 mm (1”) BSPF

Download Type Information
Brochure
Manual
Spare Parts
Installation Drawing
